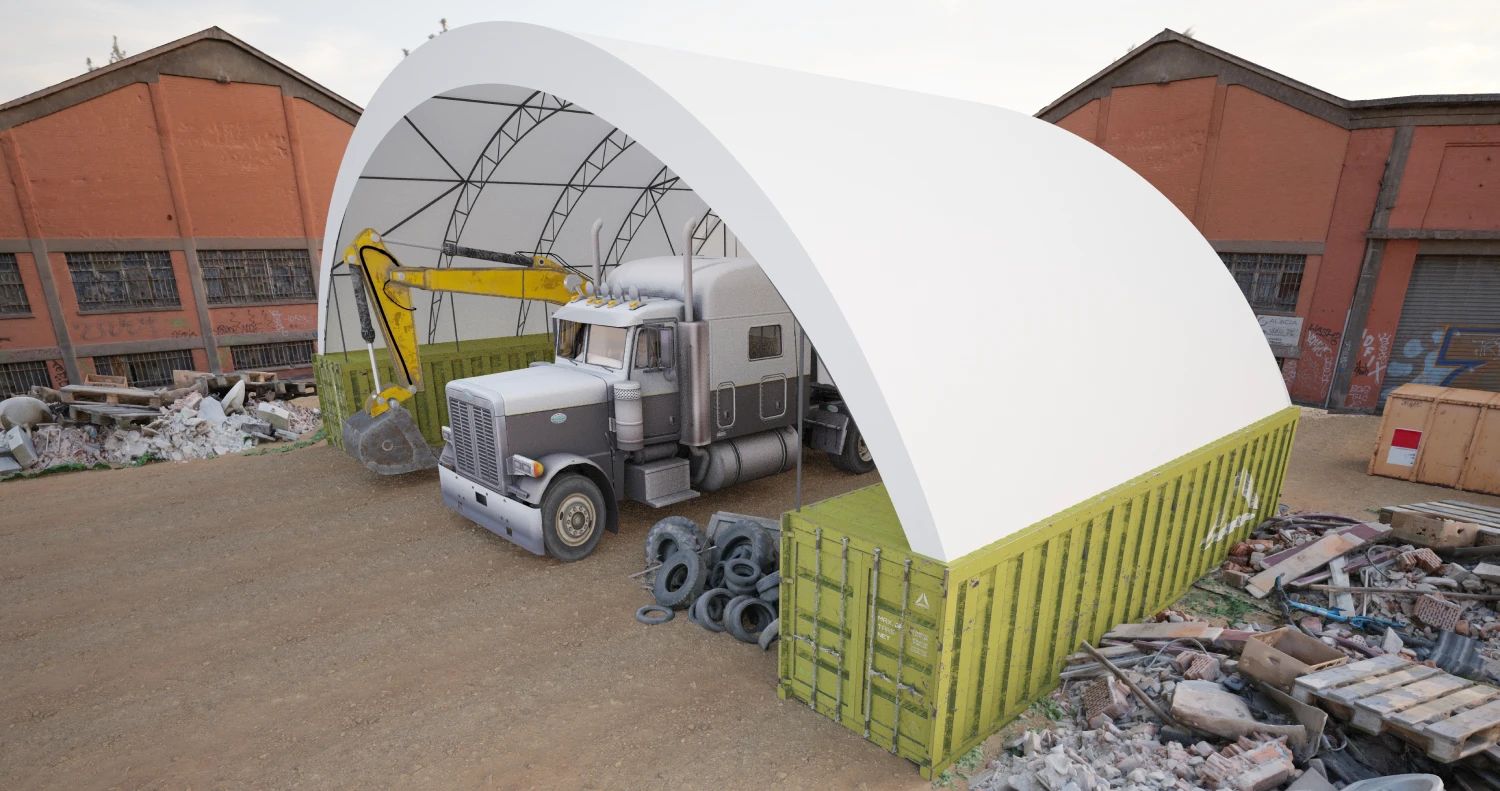

Semi truck and excavator stored with tires in industrial shelter.
21m Wide x 12m Long Double truss Heavy Duty Commercial Grade Dome Shelter 900gsm Fabric Cover - Image 4
Large open-frame arched sports structure between two storage containers.
Engineering drawing of a segmented arch bridge with dimensions.
Truck and excavator inside a white arched recycling facility shelter.
Isometric drawing of an arched container bridge with suspended lifting gear.
Gold badge advertising a 15-year warranty with stars and shield.
Built to withstand harsh Australian conditions
SUN UV RAIN WIND SNOW
Maximum Design Wind Speed = 180km/h
SKU: DSS-21W-12L-DS-DT

21m Wide x 12m Long Double truss Heavy Duty Commercial Grade Dome Shelter 900gsm Fabric Cover

Original price was: $25,360.Current price is: $20,290.

(inc. GST)
Get a Free Custom Quote
Need Help? Call 0468 080 180
  • 192m² undercover workspace — fits vehicles, machinery, equipment
  • 25% stronger 900gsm PVC — fire retardant, tear-resistant ripstop
  • Welded base plates — engineered for the biggest, toughest installs
15 Year Warranty
Available 140 Depots
25% Stronger Than Competitors
Custom Made Dome Sizes Available

You may also like…

Description

Full Specifications

Width21m
Length12m
Height (Dome Only)6m
Height on GP Containers8.6m
Height on HC Containers8.9m
Truss TypeDouble Truss
ConnectionBase Plates – requires welding on mounting surface
Frame MaterialHot Dip Galvanised
Arch Size76mm x 2.0mm
Purlin Size76mm x 1.8mm
Cover MaterialPVC 900gsm Ripstop
Wind Rating180km/h
Fire RatingFire Retardant
Weather Resistance100% Weather Resistant
Shipping SizeBox 1 of 2 – 3050mm L x 1100mm W x 1300mm H
Box 2 of 2 – 3030mm L x 1100mm W x 1300mm H
WeightBox 1 of 2 – 1000kg
Box 2 of 2 – 980kg

Commercial Fabric Covering

Roofing CoverPVC 900gsm – 25% Stronger than competitors
Weather Resistance100% Weather Resistant
Fire RatingFire Retardant
Tear ResistanceRipstop PVC

Protection From

SUN UV RAIN WIND SNOW
PLEASE NOTE: Back walls are sold separately. Add a back wall to your order here.

Freight Information

SIZE (BOX 1 OF 2) (L x W x H)3050MM1100MM1300MM
SIZE (BOX 2 OF 2) (L x W x H)3050MM1100MM1300MM
TOTAL WEIGHT1000KG (BOX 1 OF 2)980KG (BOX 2 OF 2)

Depots For Collection

MELBOURNE, VIC

SYDNEY, NSW

ACT

BRISBANE, QLD

ADELAIDE, SA

PERTH, WA

NORTHERN TERRITORY, NT

ADELAIDE, SA

15 Year Warranty

All Dome Shelter Supplies commercial-grade dome shelters come with a comprehensive 15-year warranty covering both the frame and fabric cover.

What’s Covered

  • Frame: 15-year warranty against structural defects and rust-through on the hot dip galvanised steel frame
  • Fabric Cover: 15-year pro-rata warranty on the PVC 900gsm ripstop cover against UV degradation, tearing under normal use, and waterproofing
  • Hardware: All twist-lock fittings and ratchets covered against manufacturing defects

Warranty Conditions

  • Shelter must be installed according to the supplied instructions
  • Not valid for damage caused by misuse, negligence, or modification
  • Wind damage claims require wind speed data verification
  • Warranty is non-transferable and applies to the original purchaser only
